Features:

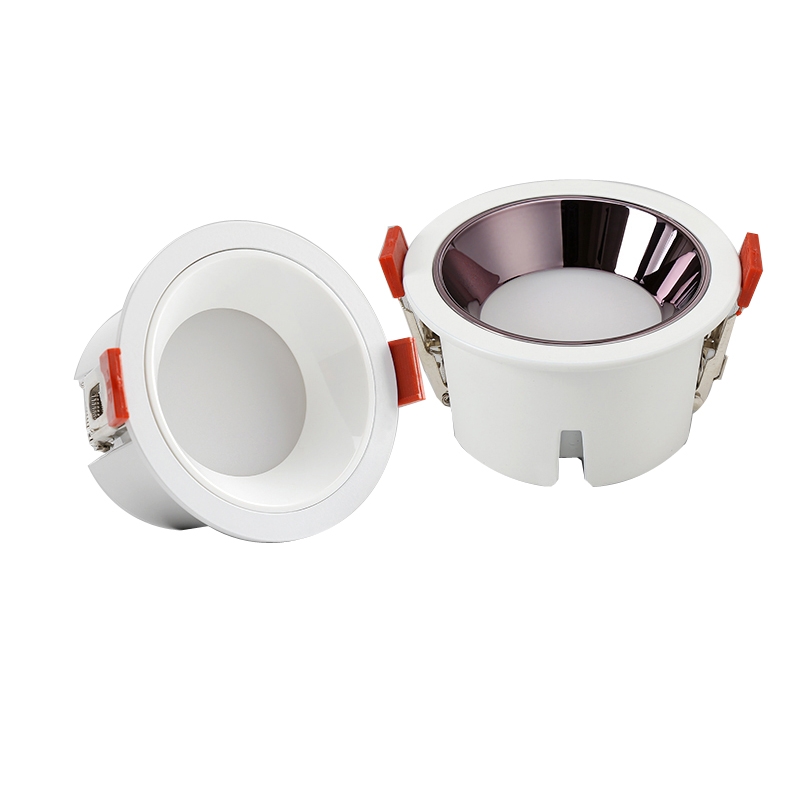

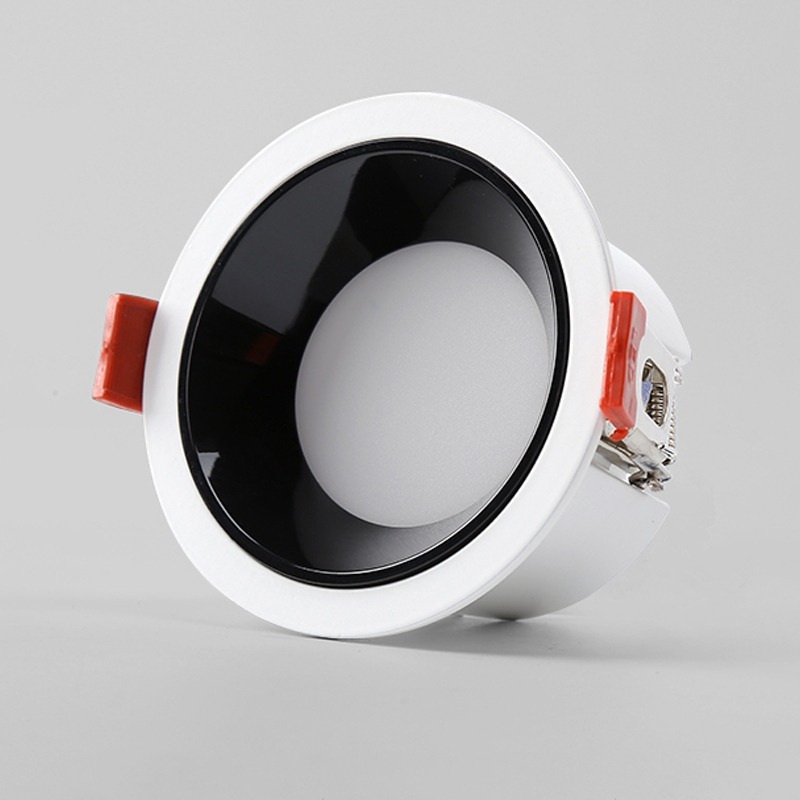

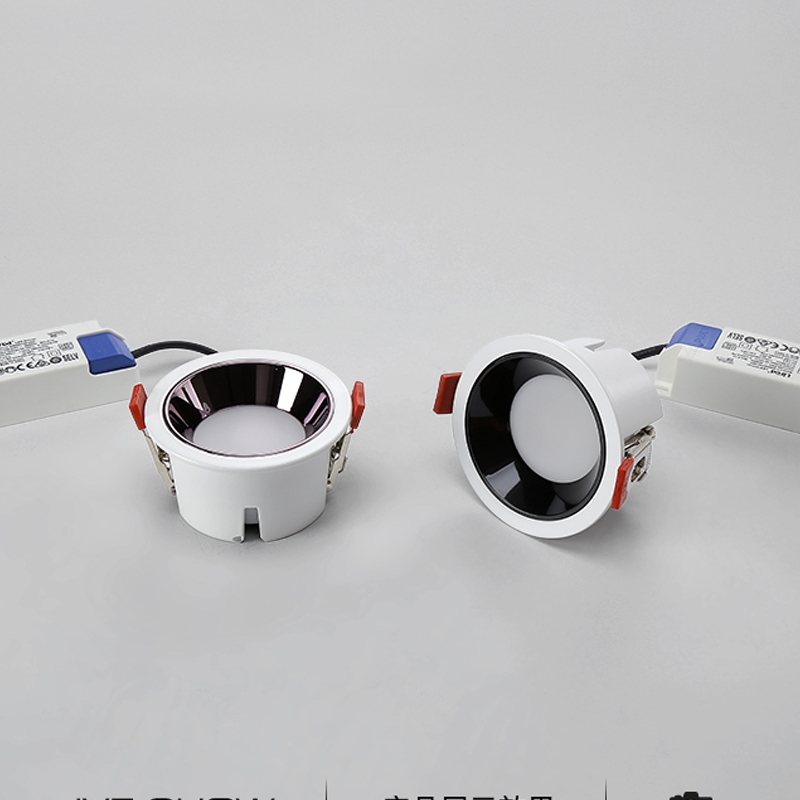

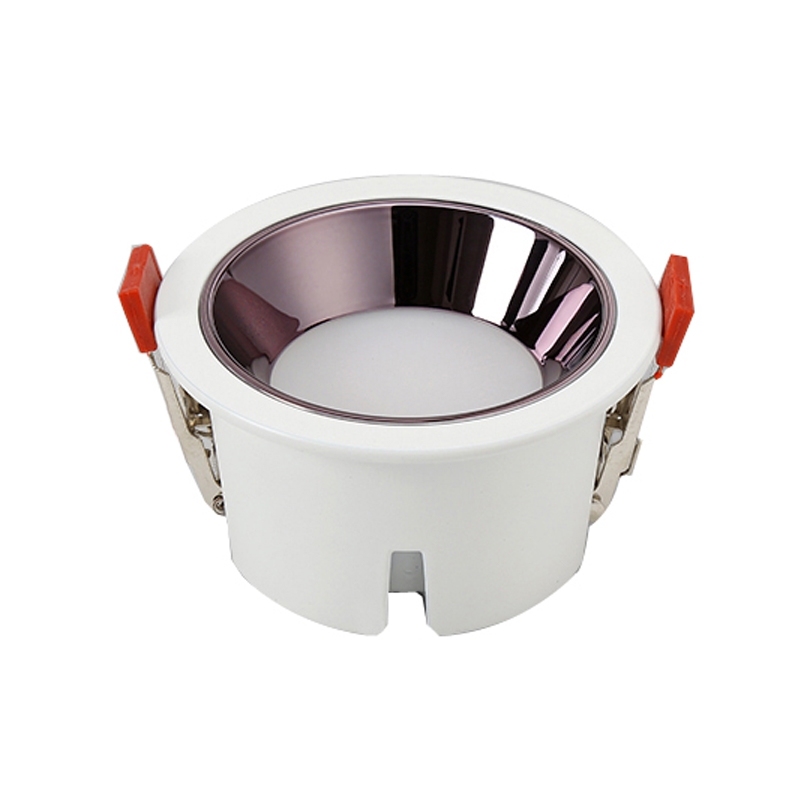

1 4 kinds of colour reflector options to perfectly suit the aesthetics of your project
2 Opal diffuser glare free design ,Spread a very homogenous light
3 Energy savings of up to 60 % compared to luminaires that use CFL
4 Adopt aluminum alloy as material die-casting process , high-end and gorgeous
5 Low UGR < 16
6 High transmission PMMA Cover No UV or IR radiation
7 Medium useful life > 50,000 hours (L80B50) at ambient temperature of 25 ºC
8 Working environment temperature: -20oc ~ +45oc.
9 Dimming options : Triac 0/ 1-10V DALI
10 IP44 protection level
|
Model Number |
Input voltage(V) |
Power (w) |
LED Chip |
Luminous flux (lm) (±5%) |
Beam angle(o) |
CCT (K) |
CRI |
Size (mm) |
Cutout(mm) |
|
OP-DLP9W P3 |
AC220V-240V |
9W |
OSRAM |
900LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ85*H46mm |
ø75mm |
|
OP-DLP12W P3 |
AC220V-240V |
12W |
OSRAM |
1200LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ100*H48mm |
ø90mm |
|
OP-DLP15W P3 |
AC220V-240V |
15W |
OSRAM |
1500LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ114*H68mm |
ø95mm |
|
OP-DLP20W P3 |
AC220V-240V |
20W |
OSRAM |
2000LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ130*H55mm |
ø110 mm |
|
OP-DLP30W P3 |
AC220V-240V |
30W |
OSRAM |
3000LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ170*H65mm |
ø150mm |
|
OP-DLP35W P3 |
AC220V-240V |
35W |
OSRAM |
3500LM |
90 |
2700K 3000K 4000K 5000K 6000K |
80+ |
Φ170*H65mm |
ø150mm |
