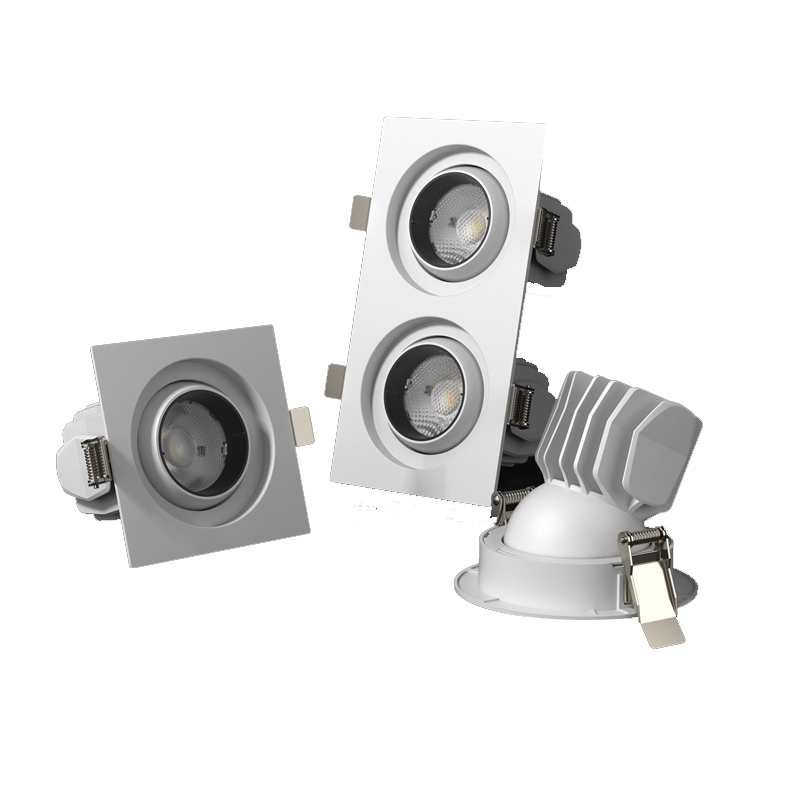

DLS series is recessed adjustable Eyeball light being 360° rota-table in the horizontal plane and 30° adjustable in the vertical plane it can place light exactly where it is needed, minimizing any glare to customers,Giving you the option to control the direction of the light. This is great when you need the flexibility to change spotlighting. It has Round and Square and twins square models,it is ideal for shop and retail applications, where either accent lighting, or simply high flux lighting is required.
|
Model No. |
Input voltage(V) |
Power (w) |
LED Chip |
Luminous flux (lm) (±5%) |
Beam angle(o) |
CCT (K) |
CRI |
Size (mm) |
Cutout(mm) |
|
OP-DLS15W S2 |
AC220-240V |
15W |
OSRAM Bridgelux |
1500LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ110*95mm |
Φ95-100mm |
|
OP-DLS30W S2 |
AC220-240V |
30W |
OSRAM Bridgelux |
3000LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ135*119mm |
Φ120-125mm |
|
OP-DLS15W S2 |
AC220-240V |
15W Square |
OSRAM Bridgelux |
1500LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ110*110*95mm |
Φ100*100mm |
|
OP-DLS30W S2 |
AC220-240V |
30W Square |
OSRAM Bridgelux |
3000LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ135*135*119mm |
Φ120*120mm |
|
OP-DLS15W*2 S2 |
AC220-240V |
2*15W Twins |
OSRAM Bridgelux |
2*1500LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ210*110*95mm |
Φ200*100mm |
|
OP-DLS30W*2 S2 |
AC220-240V |
2*30W Twins |
OSRAM Bridgelux |
2*3000LM |
15/24/38 |
2700K 3000K 4000K 5000K |
90+ |
Φ255*135*119mm |
Φ240*120mm |
